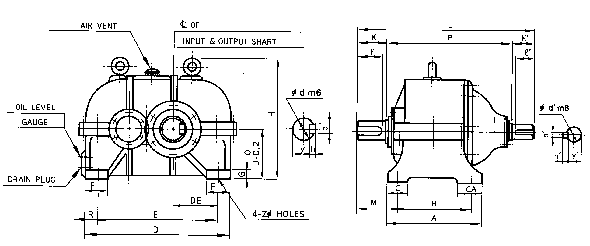

Among the above dimensions, the length and weight of the MOTOR are based on 4 POLE.
(may vary depending on MOTOR MAKER and POLE)

When ordering the above product, please specify the machine name, time, presence or absence of a gap, and input/output mounting status so that we can select and manufacture the correct frame.

When selecting a reduction ratio, if you decide on our standard reduction ratio, you can receive faster production and after service.
Standard reduction ratios: 1/6, 1/8, 1/9, 1/10, 1/12, 1/15, 1/16, 1/18, 1/20, 1/24, 1/25, 1/30, 1/35, 1/40
1/45, 1/50, 1/55, 1/60
The manufacturing tolerance of the single reduction ratio is within 3%.
